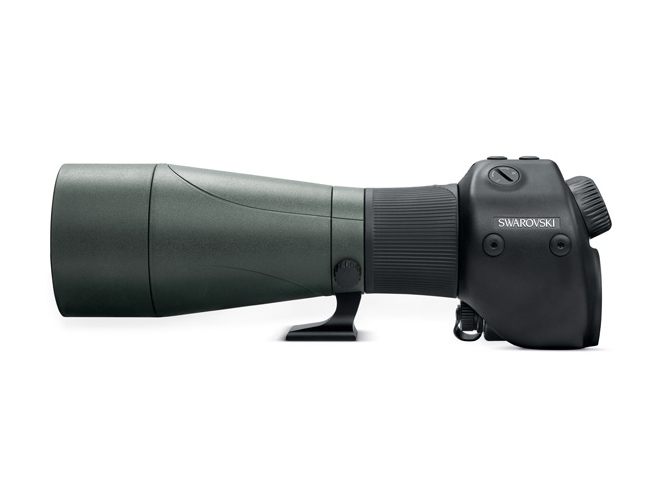

STR 80

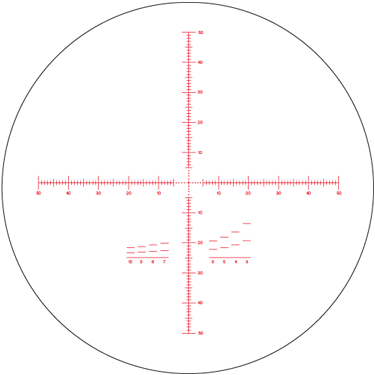

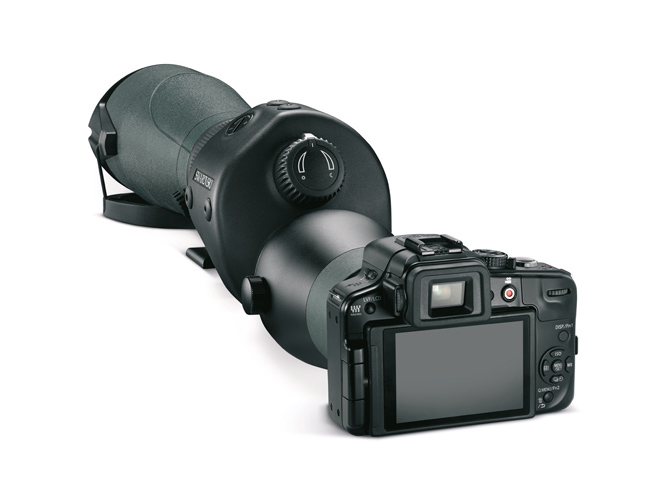

Thanks to its crystal-clear HD optics and 80-mm objective diameter, the STR 80 spotting scope provides impressive detail recognition, as well as bright, lifelike images, even in poor lighting conditions. The STR 80 spotting scope’s reticle, which can be activated and deactivated, allows you to comfortably switch between accurately estimating distances and uninterrupted viewing. It is also perfect for documenting events while digiscoping. The powerful HD optics with fluoride-containing lenses and the reticle with MOA impact point correction make the perfect total package for accurate observation.
Included
Spotting scope cap
Note: Eyepiece not included
Additional Information
Specifications | Technical DataEffective objective lens diameter (mm)
80
Shortest focusing distance (ft / m)
19 / 6
Diopter correction at ∞ (dpt)
> 5
Diopter correction reticle
± 5 dpt
Objective filter thread
M 82 x 0.75
Functional temperature
-40 °F to +131 °F (-40 °C to +55 °C)
Storage temperature
-40 °F to +158 °F (-40 °C to +70 °C)
Submersion tightness
13 ft (4m) water depth (inert gas filling)
Technical data STR 80 with eyepiece 25-50xMagnification
25-50x
Exit pupil diameter (mm)
3.2-1.6
Field of view (ft/1000 yds / m/1000 m)
126-81 ft / 42-27 m
Field of view (degrees)
2.4-1.55
Field of view for spectacle wearers (degrees)
2.4-1.55
Field of view. apparent (degrees)
60-70
Weight without battery (oz / g)
71.6 / 2030
Length (in / mm)
15.9 / 403
Technical data STR 80 with eyepiece 20-60xMagnification
20-60x
Exit pupil diameter (mm)
4.0-1.3
Field of view (ft/1000 yds / m/1000 m)
108-60 / 36-20
Field of view (degrees)
2.1-1.1
Field of view for spectacle wearers (degrees)
2.1-1.1
Field of view. apparent (degrees)
40-65
Weight without battery (oz / g)
70.4 / 1995
Length straight view (in / mm)
15.9 / 403
|
---|
