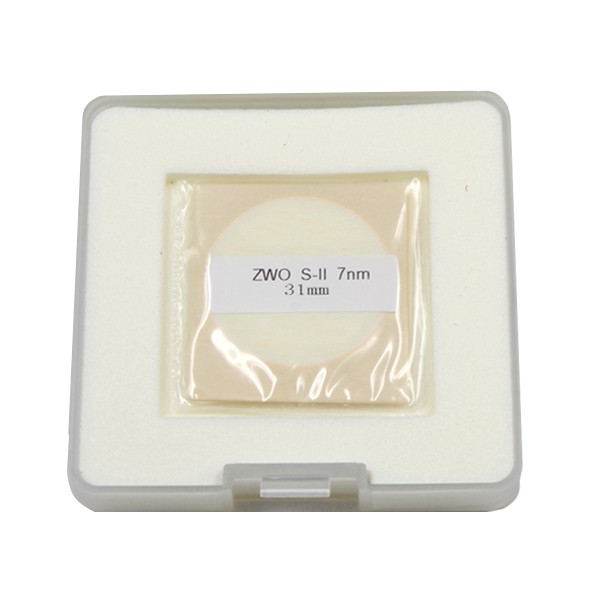

ZWO Sulfur-II (SII) Filter 31mm Unmounted

The ZWO narrowband S-II 7nm filter passes light at 672nm wavelength with a bandpass of 7nm which is designed for nebula observation . It is suitable for visual observation on most emission nebulae, planetary nebulae and supernova remnants, use it with H-alpha and OIII narrowband filters (SHO Set) for tricolor CCD astrophotography.

• Hubble look of images can be made by the combination of H-alpha, OIII-CCD and SII-CCD, such as the famous “Pillars of Creation” (M16 Eagle Nebula)
• Narrowband imaging with SHO set (H-alpha, OIII-CCD and SII-CCD) can be done with the moon up in heavy light pollution, so your equipment is not sitting dormant for several weeks

Technical Data

• FWHM：7±0.5nm
• Glass Thickness 2.0+/-0.03 mm  (1.25”/31mm/36mm)
• Fine-optically polished to ensure accurate 1/4 wavefront  over the both surfaces

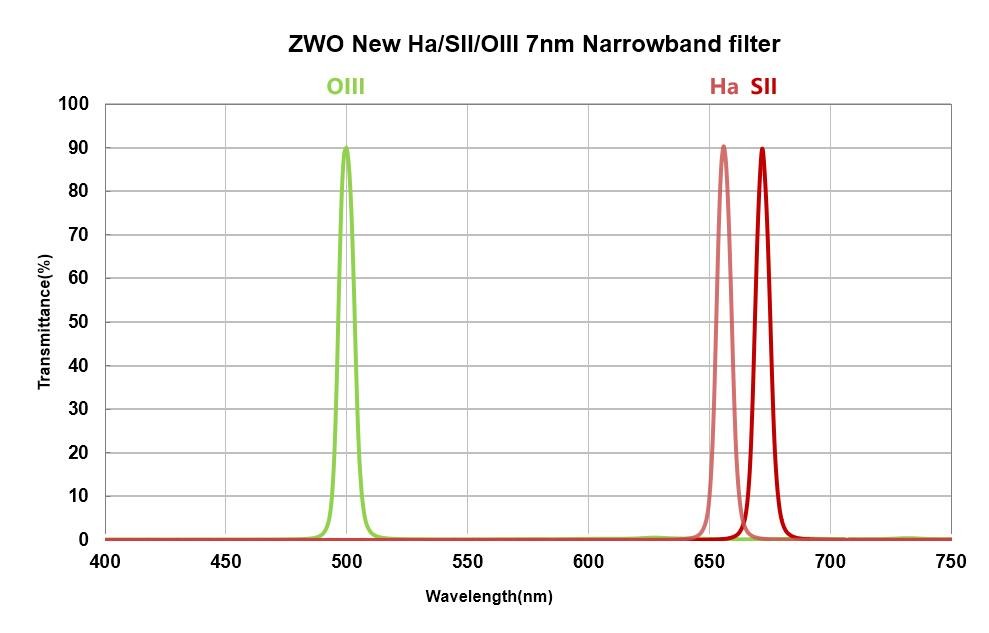

• About 90% transmission at SII line 672nm (SII filter )
• Infrared wavelength 700-1100nm cut-off
• <0.1% transmission of off-band, OD3(Optical Density)
