Product Description

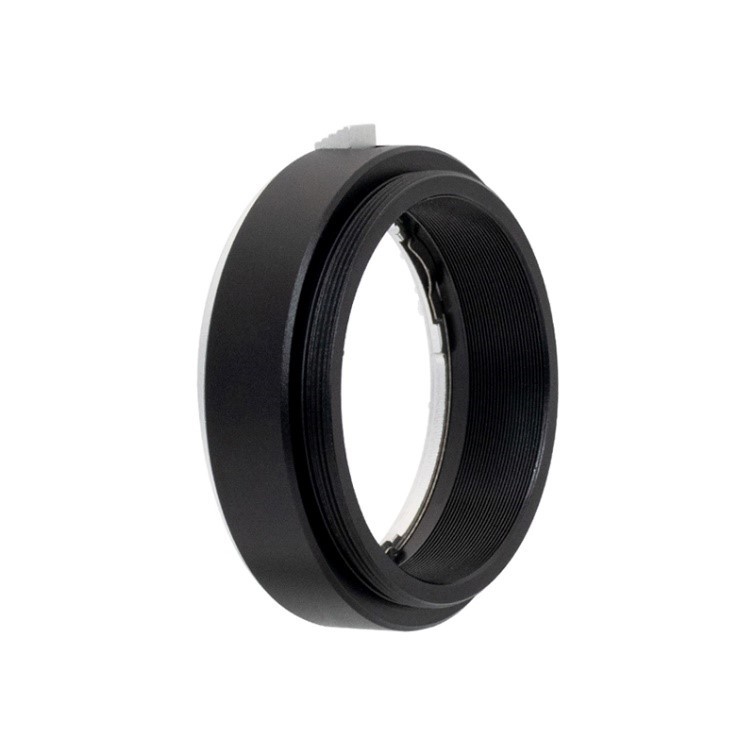

Nikon lens adapter that can be used to connect Nikon lens to 2” EFW.
The thread of the interface is M54*0.75, which means it can only be mounted on 2” EFW, not suitable for 1.25”/31mm/36mm EFW.
Connection Method:
Note: The sensor tilt adapter need to be removed before you connect the camera to the 2” EFW.
Detailed instruction:
1. Prepare the ASI camera, Nikon lens adapter, Nikon lens, 2” EFW, screwdriver and hexagon wrench;
Use the hexagon wrench coming with the camera to remove the sensor tilt adapter;
3. Use the screwdriver to remove the back cover of EFW;
4. Disassemble the filter wheel carousel (Note: Please do not disassemble or move the central screw of this carousel, otherwise the EFW will be damaged);
5. Align the four screw holes of EFW with these in the four corners of the camera chip as shown below. Tighten the screws;
6. Reassemble the EFW;
7. Mount the Nikon lens adapter on the back cover of EFW;
8. Connect the Nikon lens to the adapter.
9. All done.
Mechanical drawing:
Additional Information
| Specifications | No |
|---|
