ZWO ASI1600MM Pro Monochrome Astronomy Camera

More Views

ZWO ASI1600MM Pro Monochrome Astronomy Camera
AUD $2,049.00

Availability: In Stock

ASI1600 Pro monochrome astronomy camera with cooling fan and DDR memory buffer

Free Shipping

OR Download PDF

Details

ASI1600MM Pro

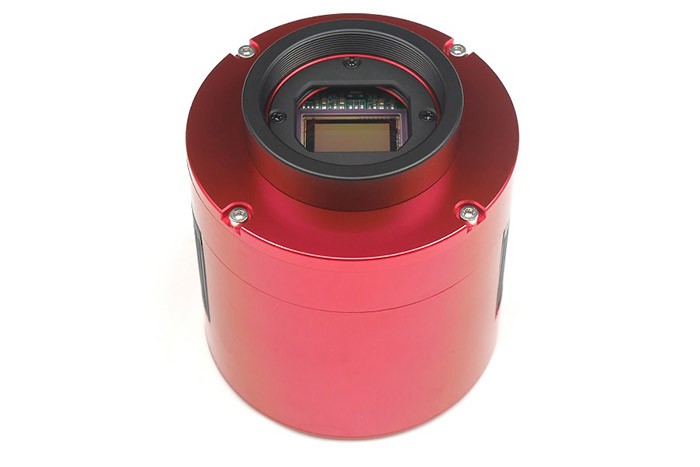

1600MM Pro21600PRO LOGO

DDR Memory Buffer

The DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.

ASI1600 Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

DDR3



Astrophotography Performance

ASI1600 Pro offers very good performance for astrophotography. Low read noise, low dark current and high dynamic range.

ASI1600 builds in a 12bit ADC, but can provide 12.5 stops dynamic range which is even better than KAF8300 due to its super low read noise.

AP Performance

QE Graph

QE peak value of more than 60%.

ASI1600MM-QE

Dark Current

The dark current of the ASI1600 from test results.

Here is a 300s dark frame tested with the cooler running at -25 degrees:

1600mc-cool dark current vs T

Reliable Mechanical Structures

There are four screws that seal the sensor chamber. The camera design has been extensively tested and is very stable.

Even when used in higher humidity environments, ASI1600 Pro will still works fine without dew problems.

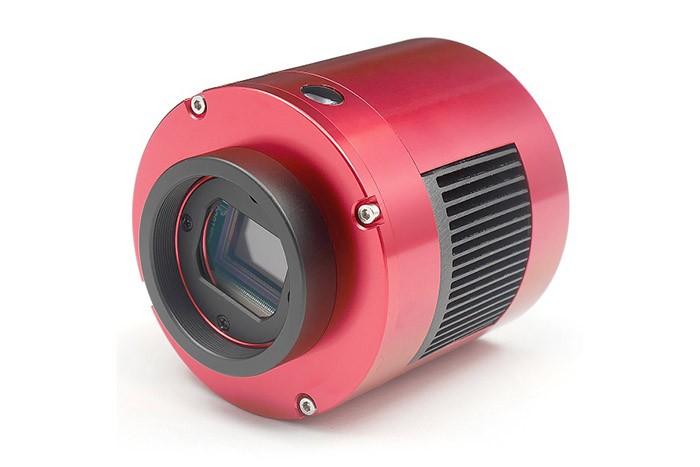

1600MM Pro3

USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provides 5Gb bandwidth to make it possible for ASI1600 Pro to run at 14.7 fps (12bit, normal mode) or 19 fps (23bit, high speed mode) at full resolution (11.7Mega).

We recommend using a 12V/3-5A or more DC adapter for cooler power supply (2.1×5.5, center positive).

Using a battery with 9-15V is also suitable for the cooler power supply.

USB 2.0 HUB: Can connect with various accessories,  including a filter wheel, guide camera or electronic focuser, allowing you to manage your cables better. There are two short 0.5m USB2.0 cables included with the ASI1600 Pro. The hub is powered by the external power supply if you connect one.

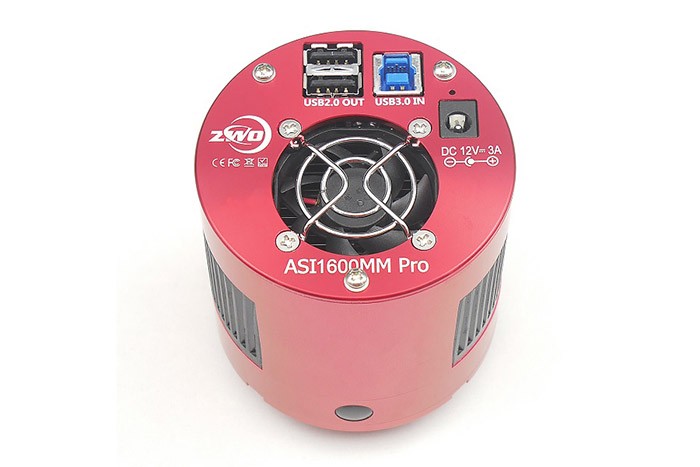

1600MM Pro4

Cooling System

ASI1600 Pro has a 2 stage TEC cooling system to enable very deep cooling (40°C-45°C below ambient). The cooler requires an external power supply, which is not included with the camera.

Connecting Diagram

20180131_100949_112

1. M43-T2 adapter

2. EOS-T2 adapter

3. 2”Filter (optional)

4. 1.25” T-Mount

5. 1.25” Filter (optional)

6. M42-1.25” Filter (optional)

7. T2 extender 11mm

8. M42-M48 extender 16.5mm

9. T2-T2 adapter

10. EFW mini

11. EOS adapter for EFW+1600

Mechanical Diagram

asi294-Mechanical-Drawing

Cooled Mono Camera solution

Additional Information

Specifications

Camera technical details

Sensor: 4/3″ CMOS
Diagonal: 21.9mm
Resolution: 16Mega Pixels 4656×3520
Pixel Size: 3.8µm
Max FPS at full resolution :23FPS
Shutter: Rolling shutter
Exposure Range: 32µs-2000s
Read Noise: 1.2e @30db gain
QE peak: 60%
Full well: 20ke
ADC:12bit
DDRIII Buffer: 256MB
Interface: USB3.0/USB2.0
Adaptor: 2″ / 1.25″ / M42X0.75
Protect window:AR window
Dimensions: 78mm Diameter
Weight: 410g
Back Focus Distance: 6.5mm
Cooling: Regulated Two Stage TEC
Delta T: 40-45 below ambient
Cooler Power consumption: 12V at 2A Max
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%


Supported resolution

12Bit ADC
4656×3520 14.7fps
3840×2160 23.1fps
1920×1680 32.9fps
1280×960 47.1fps
640×480 80.4fps
320×240 124.4fps


10Bit ADC
4656×3520 23fps
3840×2160 36.2fps
1920×1680 57.7fps
1280×960 73.6fps
640×480 125.7fps
320×240 192.4fps


More resolutions are user defined
