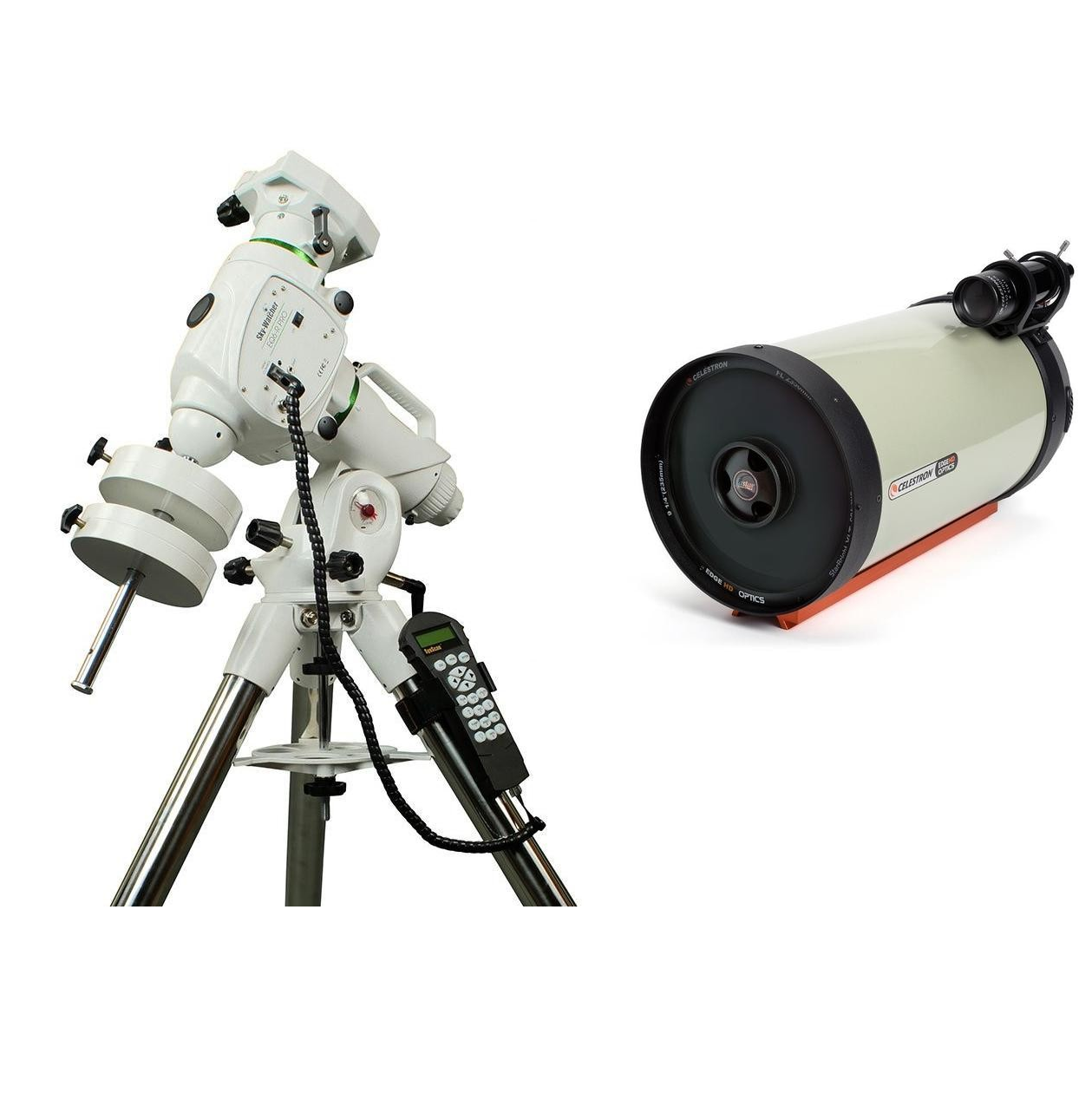

Celestron 925 EdgeHD EQ6-R Bundle

Celestron 925 EdgeHD EQ6-R Bundle
AUD $7,249.00

Availability: Backorder Available

Celestron's EdgeHD is an aplanatic, flat field Schmidt-Cassegrain telescope that produces aberration-free images across a wide visual and photographic field of view.



  • EQ6-R Equatorial Go-To Mount

  • Belt driven transmission for limiting the backlash

  • Adjustable steel tripod with an accessory tray

  • Illuminated polar scope included for precise polar alignment

  • Bubble level for perfect levelling

  • Aluminium setting circle dials allow for quick target acquisition via celestial coordinates

  • Worm gear tracking controls provides a full 360° manipulation of the RA and DEC axis

  • V and D style telescope connection

  • Freedom Find™ encoders

  • Permanent Periodic Error Correction (PPEC)


For customers wishing to fit solar filters, the outside OTA diameter is 272 mm.


NOTE: For solar viewing the Astrozap Glass Solar filter (Product No. 124446) is recommended.

Download PDF

Details

CELESTRON 9.25" EDGEHD OTA

Experience the best optical performance with EdgeHD’s aplanatic, flat field Schmidt-Cassegrain optics for pinpoint stars all the way to the edge of today’s largest imaging sensors and widest eyepieces.

Aluminum optical tube with tube vents featuring an integrated 95-micron mesh filter allows hot air to be released from behind the primary mirror. Mirror support knobs hold the mirror in place and reduce image shift during imaging.

Versatile design accommodates 2 focal ratios: native f/10 or ultra-fast f/2 imaging with a removable secondary mirror and third-party accessories.

Celestron’s premium StarBright XLT coatings provide maximum light transmission.

A 9x50 finderscope, 2” mirror diagonal for more comfortable viewing, and wide-angle 23 mm Luminos 2" eyepiece are all included.

SKY-WATCHER EQ6-R EQUATORIAL GO-TO MOUNT

The Sky-Watcher EQ6-R Belt Driven Equatorial Mount is the result of years of improvement for a better tracking and reduced backlash in the EQ6 design. The new transmission belts between the motors and worm gears limit the backlash for a superior guiding accuracy. The integrated bubble level and the adjustable tripod legs make the levelling easy, the azimuth and altitude axis can be fine adjusted for a precise polar alignment. On top of that, the included polar scope allows an extremely precise alignment that helps to drastically improve the quality of tracking for astrophotography.

The new features of the EQ6-R are:

  • Transmission belt
  • Heavy duty knobs for azimuth and altitude adjustment
  • Handle on the right ascension axis
  • Wider latitude range (5°-65°)

The exceptional SynScan Go-To system allows full control of both R.A. and Dec. axes with 9 slew speeds and 5 arcminute pointing precision, allowing you to quickly and accurately locate objects across the night sky. The Go-To system can automatically slew the telescope on command toward planets, stars, nebulae, galaxies, clusters and much more. The SynScan has 42,900 memorised celestial objects for an amazing journey in the night sky. The Deep Sky Tour function suggests a list of the most interesting deep sky objects currently visible, so even the novice astronomer can easily observe faint objects at the touch of a button.

The EQ6-R is equipped with a SNAP port for controlling the camera shutter release. Working with the SynScan hand control’s “Camera Control” function, a user can take batch exposures in up to 8 groups of “Exposure-time & Frames”.

Additional Information

Specifications
OPTICAL TUBE INFO:
Optical Design EdgeHD
Aperture 234.95mm (9.25")
Focal Length 2350mm (93")
Focal Ratio f/10
Focal Length of Eyepiece 1 23mm (0.91")
Magnification of Eyepiece 1 102x
Finderscope 9x50
Star Diagonal 2" with 1.25" adapter
Optical Tube Aluminum
Highest Useful Magnification 555x
Lowest Useful Magnification 34x
Limiting Stellar Magnitude 14.4
Resolution (Rayleigh) 0.59 arc seconds
Resolution (Dawes) 0.49 arc seconds
Light Gathering Power (Compared to human eye) 1127x
Secondary Mirror Obstruction 85mm (3.35")
Secondary Mirror Obstruction by Diameter 36%
Secondary Mirror Obstruction by Area 13%
Optical Coatings StarBright XLT
Optical Tube Length 559mm (22")
Optical Tube Diameter 271.78mm (10.7")
Optical Tube Weight 21 lbs (9.53 kg)
Dovetail CGE Dovetail Bar

MOUNT SPECIFICATIONS

Model Number SWEQ6-R
Mount Type German Equatorial Mount
Tripod Material Steel
Telescope Mounting V and D Style
Payload 20kg
Mount Head Weight 17.3kg
Tripod Weight 4.5kg
Counterweight Bar Diam. 18mm
Counterweight Bar Length    240mm + 180mm (extension)
Latitude Range 5-65°
Azimuth Range +/- 9°
Power Requirement DC 12~16V – 2A
Pointing Accuracy up 5 arc. min.
Slewing Speed up to 3.4°/sec (800X)
Guiding Speed 0.125X, 0.25X, 0.50X, 0.75X, or 1X
Motors Resolution approx. 0.14 arc-second (9216000 Counts/Rev)
